Step-by-Step Guide: Joining Two Tables in Tableau Simplified

Tableau is a powerful data visualization tool that allows users to create dynamic and interactive dashboards. One of the fundamental tasks in Tableau is joining two or more tables to consolidate data from different sources into a single view. This is essential for performing comprehensive analysis and generating insights from disparate datasets. In this step-by-step guide, we will walk you through the process of joining two tables in Tableau, simplifying the process for both beginners and experienced users alike.

Why Join Tables in Tableau?

Before diving into the steps, let’s briefly discuss why joining tables is crucial in data analysis:

1. Combining Data: Joining tables allows you to combine data from different sources, making it possible to analyze relationships and trends across datasets.
2. Creating Comprehensive Views: By joining tables, you can create a more complete and enriched dataset, which can lead to more insightful visualizations.
3. Efficiency: Instead of working with separate data sources, joining tables in Tableau enables you to perform analysis more efficiently within a single environment.

Understanding Tableau Joins

In Tableau, a join is a method of combining rows from two or more tables based on a related column between them. The types of joins available in Tableau are:

1. Inner Join: Returns only the rows where there is a match in both tables.
2. Left Join: Returns all rows from the left table and the matched rows from the right table. If there is no match, NULL values are returned for columns from the right table.
3. Right Join: Returns all rows from the right table and the matched rows from the left table. If there is no match, NULL values are returned for columns from the left table.
4. Full Outer Join: Returns all rows when there is a match in either the left or right table. If there is no match, NULL values are returned for the columns from the table without a match.

Step 1: Connecting to Your Data Source

The first step in joining tables in Tableau is to connect to your data source.

1. Open Tableau: Launch Tableau and go to the start page.
2. Connect to Data: Click on “Connect” in the left-hand pane. Choose your data source type (e.g., Excel, SQL Server, MySQL, etc.).
3. Locate Your Data: Navigate to the location of your data files or database and select them.
4. Load Data: Tableau will load the data into the Data Source tab, where you can see a preview of the tables available for use.

Step 2: Dragging Tables into the Canvas

Once your data is loaded into Tableau, the next step is to drag the tables you want to join into the canvas area.

1. Navigate to Data Source Tab: After connecting to your data source, you will be automatically directed to the Data Source tab.
2. Drag First Table: In the left pane, you will see the list of available tables. Drag the first table into the canvas area.
3. Drag Second Table: Now, drag the second table you want to join onto the canvas. When you do this, Tableau will prompt you to define the join relationship between the two tables.

Step 3: Defining the Join Relationship

The next step is to define how the two tables should be joined. This involves specifying the key columns that Tableau will use to match the rows from both tables.

1. Select Join Type: Once you drop the second table onto the canvas, a join dialog box will appear. Here, you can choose the type of join (Inner, Left, Right, Full Outer) based on your requirements.
2. Specify Join Fields: Below the join type selection, you will see dropdown menus to select the columns from each table that you want to use for the join. For example, if both tables have a “Customer ID” field, you would select “Customer ID” from both tables.
3. Add Multiple Join Conditions: If your join requires more than one condition (e.g., matching on both “Customer ID” and “Order Date”), click on the “Add” button to include additional conditions.

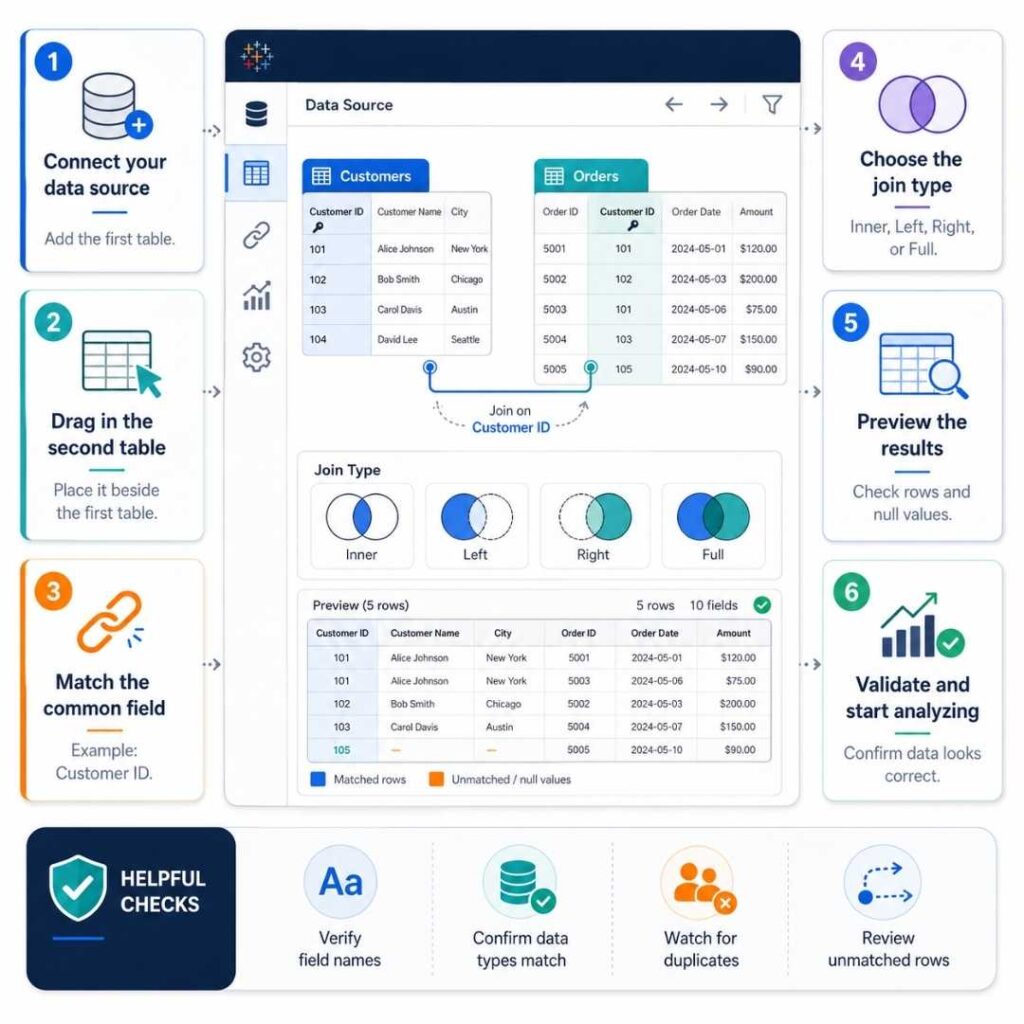

Example: Suppose you have two tables: Customers and Orders. You want to join them based on the Customer ID field.

• Drag Customers to the canvas.
• Drag Orders to the canvas and place it beside Customers.
• Choose Inner Join.
• Select Customer ID from both tables as the join key.

Step 4: Reviewing and Editing the Join

After defining the join relationship, it’s important to review and, if necessary, edit the join to ensure it meets your analysis needs.

1. Preview the Data: Tableau provides a preview of the joined data in the Data Source tab. Review the columns and rows to ensure the join has been performed correctly.
2. Edit Join: If you need to make adjustments to the join, click on the join icon between the two tables on the canvas. This will reopen the join dialog box, where you can modify the join type or conditions.
3. Handling Null Values: If you’re using a Left, Right, or Full Outer Join, some fields may have NULL values where there was no match. Consider how these NULLs should be handled in your analysis (e.g., filtering them out or replacing them with a default value).

Step 5: Working with Joined Data in Tableau

Once the tables are joined, you can start working with the combined dataset in Tableau to create visualizations and perform analysis.

1. Switch to Sheet Tab: Click on the “Sheet” tab to start creating visualizations. You will see the fields from the joined tables available in the Data pane on the left.
2. Drag and Drop Fields: Drag and drop fields from the joined tables into the Rows, Columns, Marks, Filters, and other shelves to build your visualizations.
3. Create Calculated Fields: If needed, create calculated fields using data from both tables to derive new insights.

Example Visualization: If you’ve joined the Customers and Orders tables, you can now create a visualization showing total sales per customer. Drag Customer Name from the Customers table to Rows and Sales Amount from the Orders table to Columns to create a bar chart.

Step 6: Optimizing Your Join for Performance

Joining tables in Tableau can sometimes impact performance, especially when working with large datasets. Here are a few tips to optimize performance:

1. Use Extracts: Instead of working with live connections, consider using extracts. Extracts create a snapshot of your data, which can improve performance by reducing the load on the database.
2. Limit Data: Filter your data to include only the necessary rows and columns before performing the join. This reduces the amount of data Tableau needs to process.
3. Index Key Columns: If you’re joining tables from a database, ensure that the key columns used in the join are indexed. This can significantly speed up the join operation.

Common Pitfalls and Troubleshooting

While joining tables in Tableau is straightforward, there are some common pitfalls to watch out for:

1. Mismatched Data Types: Ensure that the join key columns in both tables have the same data type (e.g., both are integers or both are strings). Mismatched data types can cause the join to fail or produce incorrect results.
2. Duplicate Keys: Be cautious of duplicate keys in the join columns. If a key appears multiple times in either table, it can result in unexpected duplicates in the joined data.
3. Join Order Matters: The order in which you join tables can affect the results, especially when using Left or Right Joins. Be mindful of which table you place on the left or right side of the join.

Advanced Joining Techniques

For more complex scenarios, Tableau offers advanced joining techniques:

1. Joining Multiple Tables: Tableau allows you to join more than two tables. Simply drag additional tables onto the canvas and define the join relationships as needed.
2. Using Data Blending: If your data resides in different databases or files, you can use data blending as an alternative to joins. Data blending allows you to combine data from different sources on a common field without physically joining them.
3. Cross-Database Joins: Tableau supports cross-database joins, enabling you to join tables from different databases (e.g., joining an SQL Server table with an Excel spreadsheet).

Conclusion

Joining tables in Tableau is a powerful feature that enables you to create comprehensive and insightful visualizations by combining data from multiple sources. By following this step-by-step guide, you can confidently perform joins in Tableau, whether you’re working with simple datasets or complex databases. Remember to review your joins carefully, optimize for performance, and be aware of common pitfalls to ensure that your analysis is both accurate and efficient.

With a solid understanding of how to join tables in Tableau, you can unlock the full potential of your data and create impactful visualizations that drive informed decision-making.
